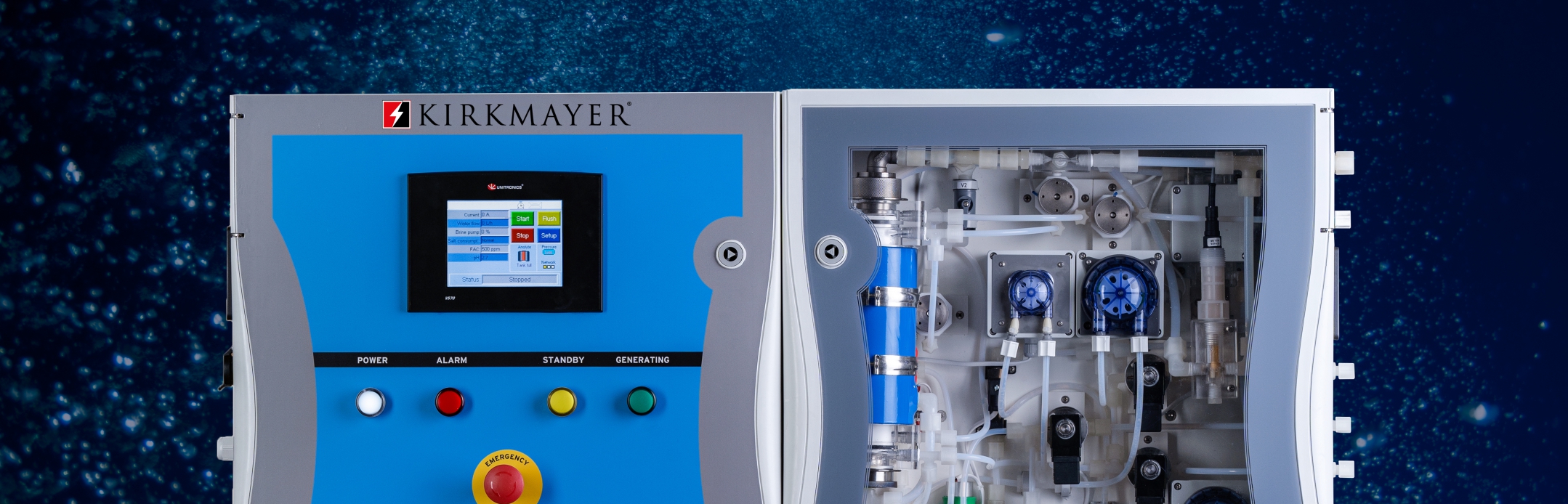

AMI Series - Heavy Duty Generators
Fully Automatic | Electro-Chemical Activated (ECA)
The Kirkmayer® AMI Series is our most advanced, fully automatic, heavy duty generator. When efficiency and advanced automation is required for generation of Anolyte Disinfectant Solution then the Fully Automatic AMI Series is the system generator of choice.
The Kirkmayer® AMI Series has been designed considering the needs of those customers who prefer choosing more automated options, and still want to rely on high quality, maintaining robustness and simplicity as the main features.
The Kirkmayer® AMI Series is equipped with our patented REACTRINA® technology double cooled electrolytic cell incorporating components with a unique architecture that makes it revolutionary. Unlike other cylindrical coaxial cells, which today are the most common and widely distributed on the market, our cell has been optimized, conceived, and developed with a special anode geometry that has allowed to integrate a double electrodes (anode-cathode) cooling system.

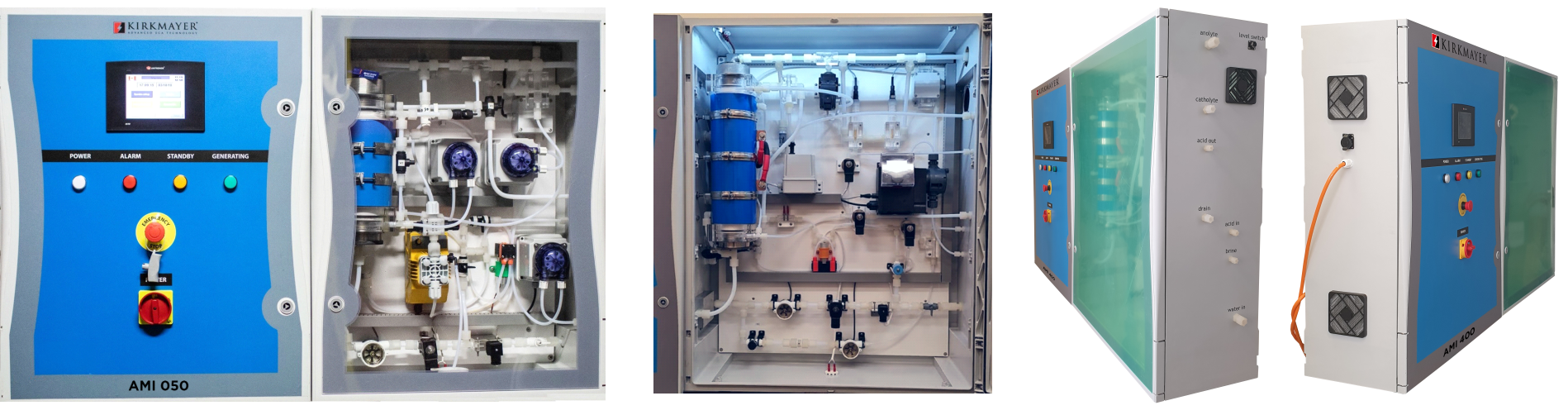

ECA Generator Range 50 LPH - 600 LPH

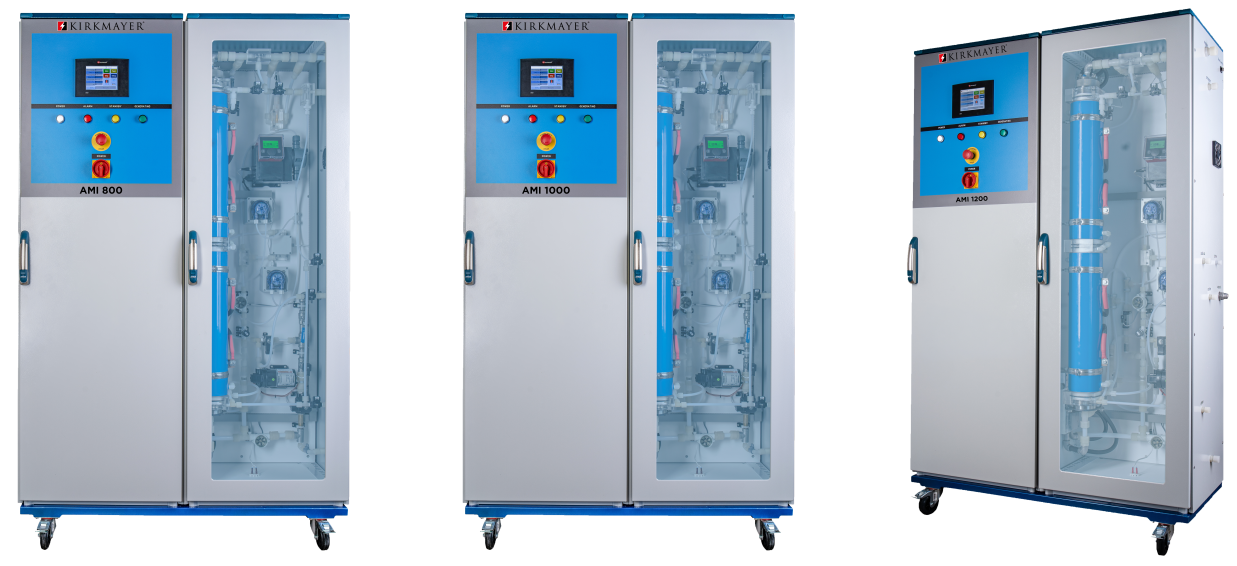

ECA Generator Range 800 LPH - 1200 LPH
PATENTED
Double Electrode Cooling System
- Breaks, crevices, and cracks at junction points with the heads.
- Initiation and diffusion of etching phenomenon on anode, with relative damage to the coating.
- Excessive overheating in operation.
Key Features
- Touch screen multicolor PLC
- Separate compartments for hydraulic and electrical components
- Double-cooled electrodes cell
- Integrated electrode flushing system
- Possibility of adjusting the pH (extreme stability)
- Both electrodes in Titanium Grade 2
- Connectors and hoses in PTFE/PVDF
- Automatic start and stop
- Process current stabilization
- Integrated float level switches
- Conductivity sensor
- Acid sensor (if purchased the fully automatic flushing – optional)
Special Options
ANODE'S DOUBLE COATING
Provides the anode cell wall with extra protection for wear. Required for systems that will be operational > 8 hours/day.
Anode Double Coating has a 2 Year Cell Wall Warranty (cell only, no membrane)
INTERCON
Allows us to control and manage the unit remotely via ethernet.
- Internet Connection
- Data communications protocol
FULLPH
Allows the pH to modify a wider range, from 3~8.
- Automatic pH adjustment 3~8
FULLFLUSH
No Operator Required as the unit automatically performs washing of the cell, the user only must make sure to change the acid, usually every three flushing cycles.
PROBEPH
The pH integrated probe, in the HOCL output line, allows for accurate pH readings and adjustment.
PROBEORP
The ORP (REDOX) integrated probe, in the HOCL output line allows accurate ORP readings

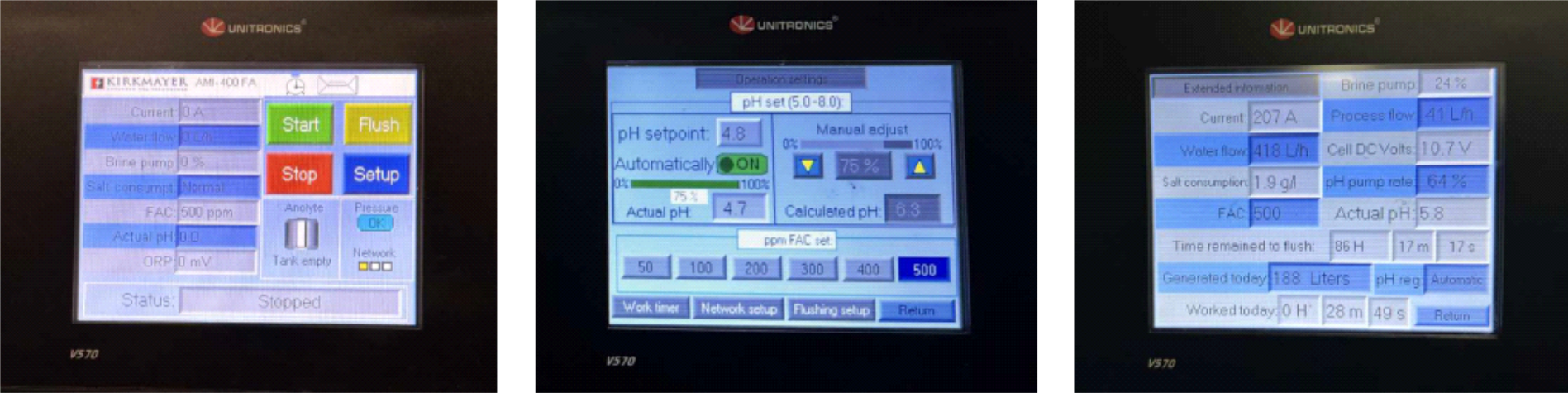

Industrial Programmable Logic Controller (PLC)
Key Features
- Touch Screen Technology
- Multicolor PLC Screen
- iPhone I Android Remote App (No Up-Charge)

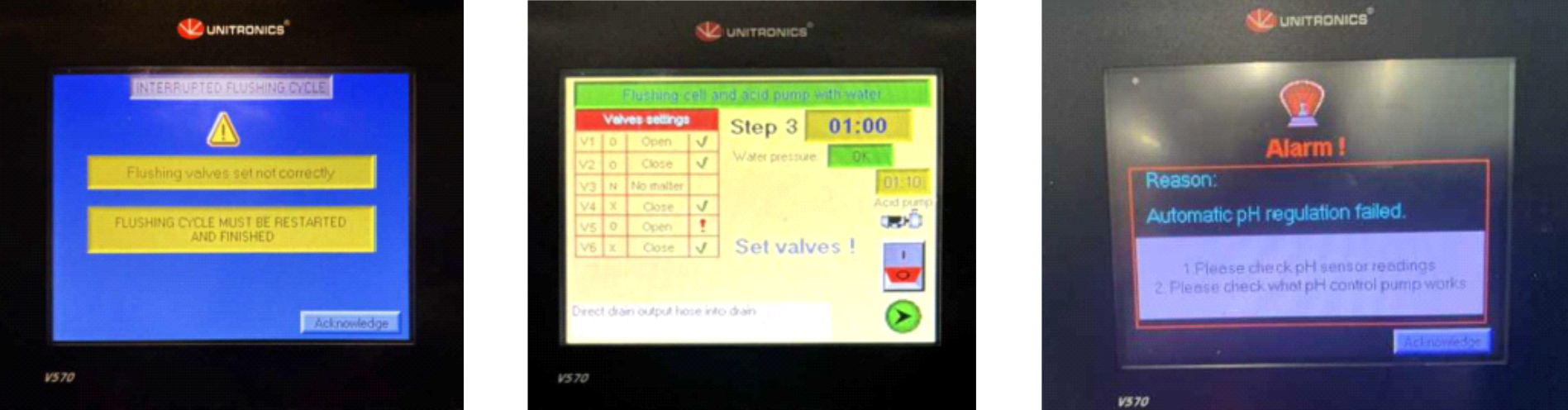

Examples of Built-in Alarms
Remote Access Anywhere in the WORLD!
Dairy | Hog | Poultry | Water Treatment
5 Reasons Livestock Should
Drink From HOCl-Treated Water
- Reduces harmful bacteria and biofilm in the water lines, lowering the microbial load animals are exposed to.
- Improves performance outcomes like growth, livability, and productivity by keeping the water system cleaner and more stable.
- Cleaner drinking water can help reduce disease pressure and support overall herd or flock health.
- Better water intake supports digestion, nutrient absorption, and feed conversion.
- Improves water taste and cleanliness, which encourages animals to drink more consistently.
Other Key Industries
Green Houses
Food Processing
Cannabis
Skin Care
Veterinarian
Hospitals
Kirkmayer ECA System Generators
Advanced Electrochemical Activation Technology
Kirkmayer is #1
in ECA Cell Technology
Double-Cooled vs. Single-Cooled ECA Cells
Why Cell Cooling Matters
Remote Access
Anywhere in the World
Ready to Upgrade Your Disinfection?
SYSTEM GENERATORS
SYSTEM CAPACITIES
SYSTEM DATA SHEETS
BROCHURES
GENERAL INQUIRY
BMI Series - Lite Duty Generators
Fully Automatic | Electro-Chemical Activated (ECA)
The Kirkmayer® BMI Series is our low volume, fully automatic, lite duty generator. When cost and low volume systems generators are required for generation of Anolyte Disinfectant and Catholyte Cleaning/Degreasing Solutions then the Kirkmayer® Fully Automatic BMI Series is the system generator of choice. Outstanding quality with the smallest ever footprint.
The Kirkmayer® BMI Series has been designed for small consumers. We have reduced the size of the units to a minimum without reducing the quality that distinguishes our technology, everything translates into very small dimensions and lightness that allows easy portability, unparalleled simplicity of maintenance.
In the Kirkmayer® BMI Series we have installed our patented REACTRINA® technology double cooled electrolytic cell incorporating components with a unique architecture that makes it revolutionary with a flat diaphragm, produced by a PTFE derivative, this action has allowed us to make our cell indestructible, with the consequent possibility of transporting the generator on any terrain also the most impracticable.

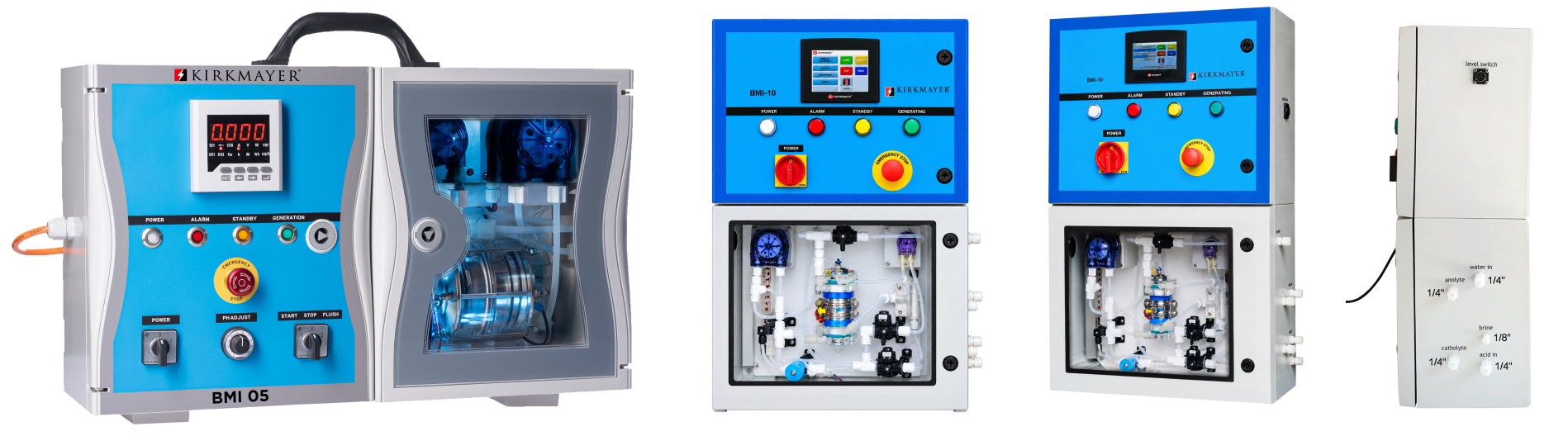

ECA Generator Range 5 LPH - 30 LPH
PATENTED
Double Electrode Cooling System
- Breaks, crevices, and cracks at junction points with the heads.
- Initiation and diffusion of etching phenomenon on anode, with relative damage to the coating.
- Excessive overheating in operation.
Key Features
- Separate compartments for hydraulic and electrical components
- Double-cooled electrodes cell / integrated float level switches
- Integrated electrode flushing system / process current stabilization
- Wide range input Voltage 100-240V / automatic start and stop
- Possibility of adjusting the pH with a dedicated knob, extreme stability of the pH
- PTFE based diaphragm / both electrodes in Titanium
- Connectors and hoses in PTFE/PVDF
- Graphical measuring instrument for current and voltage
Special Options
ANODE'S DOUBLE COATING
Provides the anode cell wall with extra protection for wear. Required for systems that will be operational > 8 hours/day.
Anode Double Coating has a 2 Year Cell Wall Warranty (cell only, no membrane)
INTERCON
Allows us to control and manage the unit remotely via ethernet.
- Internet Connection
- Data communications protocol
MODBUS
Data Communications Protocol
Ideal Industries
Schools / Day Cares
Supermarkets
Small Grow Ops
Skin Care
Animal Shelters / Veterinarians
Dental Offices
Walk-in Clinics
Hotels / Resorts
Retirement Homes
Kirkmayer ECA System Generators
Advanced Electrochemical Activation Technology
Kirkmayer is #1
in ECA Cell Technology
Double-Cooled vs. Single-Cooled ECA Cells
Why Cell Cooling Matters
Remote Access
Anywhere in the World
Ready to Upgrade Your Disinfection?
SYSTEM GENERATORS
SYSTEM CAPACITIES
SYSTEM DATA SHEETS
BROCHURES
GENERAL INQUIRY
LAMI Series - Medium Duty Generators
Fully Automatic | Electro-Chemical Activated (ECA)
The Kirkmayer® LAMI Series is our entry level, fully automatic, medium duty generator. When efficiency and more affordability is required for generation of Anolyte Disinfectant Solution then the Fully Automatic LAMI Series is the system generator of choice.
The Kirkmayer® LAMI Series has been designed considering the needs of those customers who prefer choosing a more affordable machine, with the basic of our options, and still want to rely on high quality, maintaining robustness and simplicity as the main features.
The Kirkmayer® LAMI Series is equipped with our patented REACTRINA® technology double cooled electrolytic cell incorporating components with a unique architecture that makes it revolutionary. Unlike other cylindrical coaxial cells, which today are the most common and widely distributed on the market, our cell has been optimized, conceived, and developed with a special anode geometry that has allowed to integrate a double electrodes (anode-cathode) cooling system.

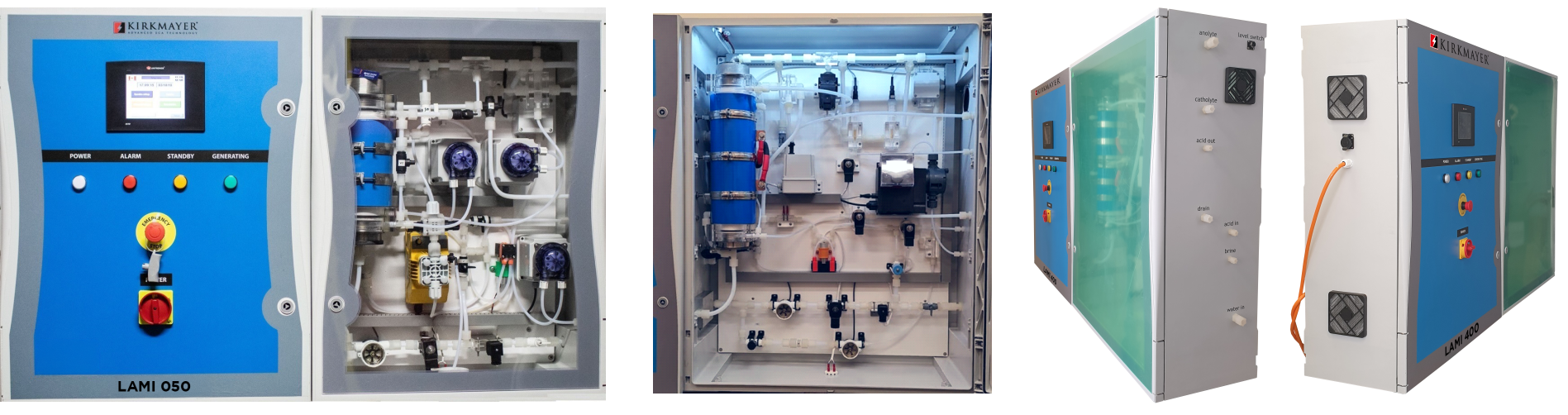

ECA Generator Range 50 LPH - 600 LPH

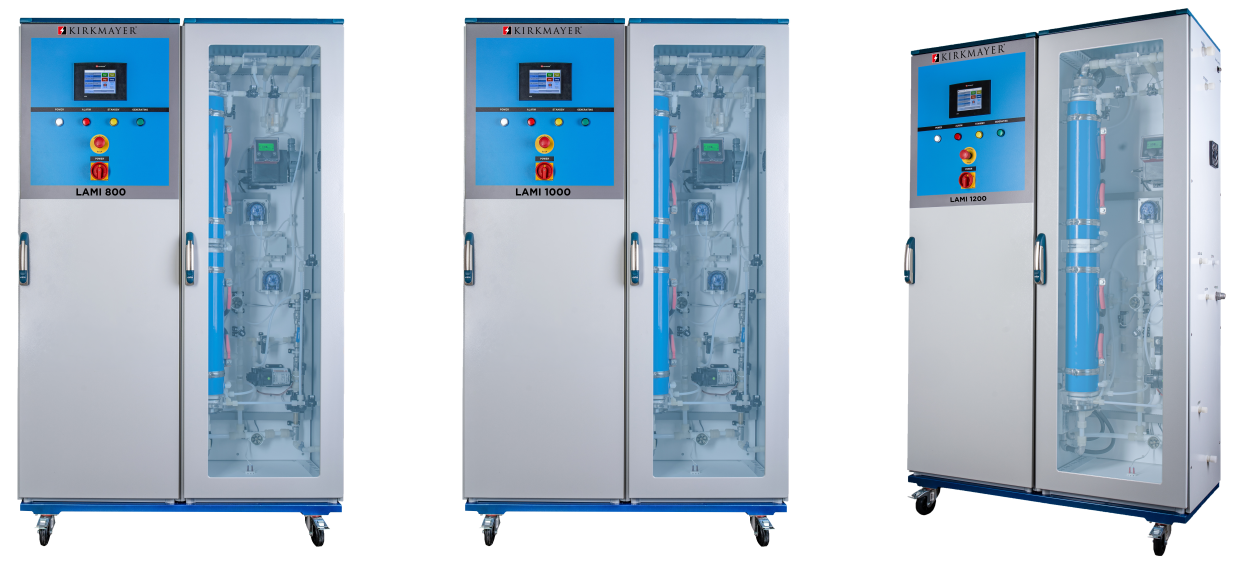

ECA Generator Range 800 LPH - 1200 LPH
PATENTED
Double Electrode Cooling System
- Breaks, crevices, and cracks at junction points with the heads.
- Initiation and diffusion of etching phenomenon on anode, with relative damage to the coating.
- Excessive overheating in operation.
Key Features
- Touch screen multicolor PLC
- Separate compartments for hydraulic and electrical components
- Double-cooled electrodes cell
- Integrated electrode flushing system
- Possibility of adjusting the pH (extreme stability)
- Both electrodes in Titanium Grade 2
- Connectors and hoses in PTFE/PVDF
- Automatic start and stop
- Process current stabilization
- Integrated float level switches
- Conductivity sensor
- Acid sensor (if purchased the fully automatic flushing – optional)
Special Options
ANODE'S DOUBLE COATING
Provides the anode cell wall with extra protection for wear. Required for systems that will be operational > 8 hours/day.
Anode Double Coating has a 2 Year Cell Wall Warranty (cell only, no membrane)
INTERCON
Allows us to control and manage the unit remotely via ethernet.
- Internet Connection
- Data communications protocol
FULLPH
Allows the pH to modify a wider range, from 3~8.
- Automatic pH adjustment 3~8
FULLFLUSH
No Operator Required as the unit automatically performs washing of the cell, the user only must make sure to change the acid, usually every three flushing cycles.
PROBEPH
The pH integrated probe, in the HOCL output line, allows for accurate pH readings and adjustment.
PROBEORP
The ORP (REDOX) integrated probe, in the HOCL output line allows accurate ORP readings
Industrial Programmable Logic Controller (PLC)
Key Features
- Touch Screen Technology
- Multicolor PLC Screen
- iPhone I Android Remote App (No Up-Charge)
Examples of Built-in Alarms
Remote Access Anywhere in the WORLD!
Dairy | Hog | Poultry | Water Treatment
5 Reasons Livestock Should
Drink From HOCl-Treated Water
- Reduces harmful bacteria and biofilm in the water lines, lowering the microbial load animals are exposed to.
- Improves performance outcomes like growth, livability, and productivity by keeping the water system cleaner and more stable.
- Cleaner drinking water can help reduce disease pressure and support overall herd or flock health.
- Better water intake supports digestion, nutrient absorption, and feed conversion.
- Improves water taste and cleanliness, which encourages animals to drink more consistently.
Other Key Industries
Green Houses
Food Processing
Cannabis
Oil and Gas
Veterinarian
Hospitals
Kirkmayer ECA System Generators
Advanced Electrochemical Activation Technology
Kirkmayer is #1
in ECA Cell Technology
Double-Cooled vs. Single-Cooled ECA Cells
Why Cell Cooling Matters
Remote Access
Anywhere in the World
Ready to Upgrade Your Disinfection?
SYSTEM GENERATORS
SYSTEM CAPACITIES
SYSTEM DATA SHEETS
BROCHURES
GENERAL INQUIRY

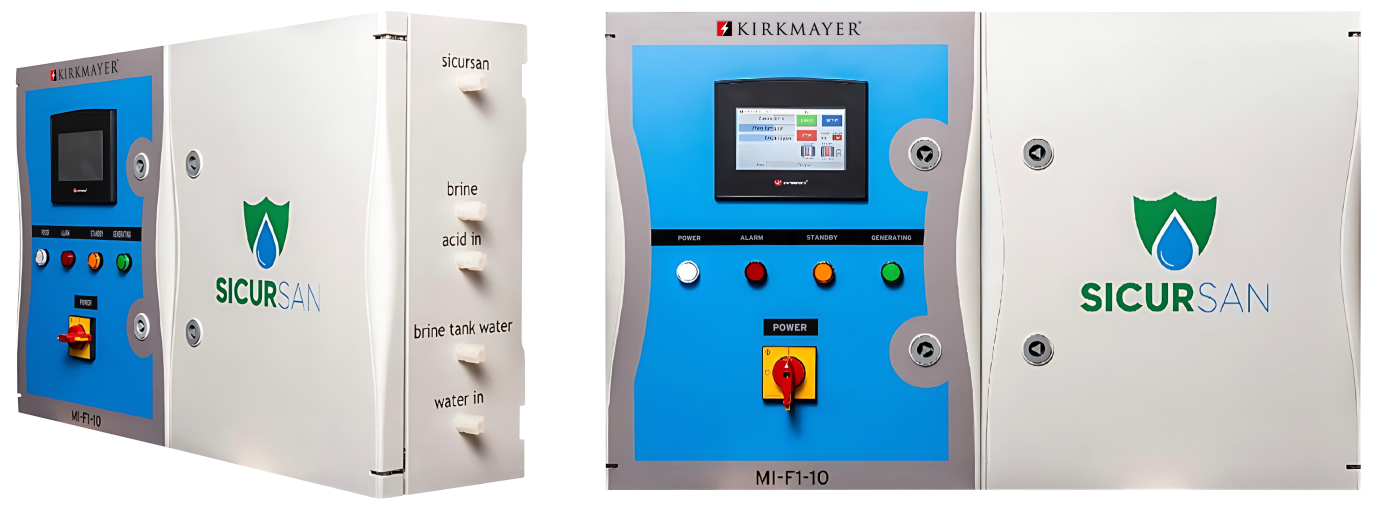

Sicursan™ Series Generators

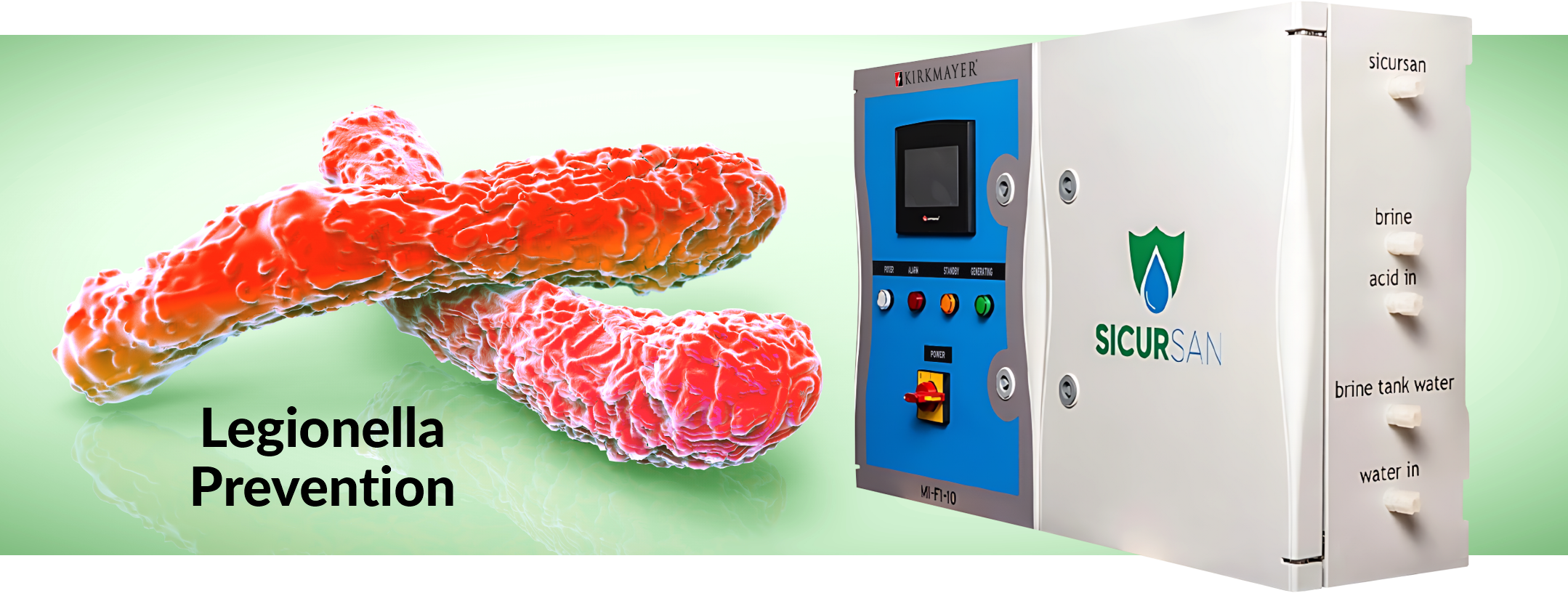

Legionella Prevention | Electro-Chemical Activated (ECA)
Technology for Legionella Prevention
| Solution | Active Element | pH Range | ORP (mV) |
|---|---|---|---|
| Sicursan | Active Cl 700 ppm | 6,8 ~ 8,3 | 910 ~ 800 |
PATENTED
Double Electrode Cooling System
- Breaks, crevices, and cracks at junction points with the heads.
- Initiation and diffusion of etching phenomenon on anode, with relative damage to the coating.
- Excessive overheating in operation.
Key Features
- Touch screen multicolor PLC
- Separate compartments for hydraulic and electrical components
- Double-cooled electrodes cell
- Integrated electrode flushing system
- Possibility of adjusting the pH (extreme stability)
- Both electrodes in Titanium Grade 2
- Connectors and hoses in PTFE/PVDF
- Automatic start and stop
- Process current stabilization
- Integrated float level switches
- Conductivity sensor
- Acid sensor (if purchased the fully automatic flushing – optional)
What Makes Sicursan™ Different
than Legionella Prevention Methods
| Method | Safety | Effectiveness | Environmental Impact |
Operational Complexity |
|---|---|---|---|---|
| Sicursan (ECA Technology) |
No hazardous chemicals; safe | High ORP; effective; no resistance | Chemical-free; zero drain discharge; safe for environment | Minimal maintenance; automated; no chemical storage |
| Chlorine dioxide | Aggressive chemical; health risks | Referenced as conventional; no explicit effectiveness data | Environmental risks; hazardous by-products | Complex procedures; chemical storage/handling |
| Copper-Silver Ionization |
Heavy metals; health risks | Referenced as conventional; no explicit effectiveness data | Environmental risks; heavy metal discharge | Complex procedures; chemical storage/handling |
Key Mechanisms
Sicursan’s™ mode of action is based on advanced electrochemical activation (ECA) to disinfect water safely and effectively:
- Electrochemical Activation (ECA)
- Sicursan™ uses a patented ECA system that energizes a saline solution through electrolysis.
- This process generates a blend of mixed oxidants, primarily active chlorine species such as hypochlorous acid (HOCl) and hypochlorite ion (OCl⁻).
- Mimicking the Human Immune System
- Technology is inspired by the action of white blood cells, which naturally produce HOCl to destroy pathogens.
- Sicursan™ replicates this antimicrobial effect using only salt, water, and electricity.
- Continuous Low-Dose Injection
- The disinfectant solution is continuously injected into water circuits at very low concentrations.
- This ensures ongoing microbial control and prevents biofilm regrowth inside pipes without altering water quality.
- Rapid Microbial Inactivation
- High oxidation-reduction potential (ORP) enables rapid inactivation of Legionella, Pseudomonas, Staphylococcus, E. coli, and other pathogens.
- The metastable oxidizing compounds prevent resistance development.
- Safety and Environmental Benefits
- No hazardous chemicals or toxic by-products are used or produced.
- The solution degrades into harmless residues, requiring no neutralization.
- Sicursan™ is safe for humans, animals, and the environment.
- Implementation
- Sicursan™ is applied as a liquid, mist, or ice, either pure or diluted, and is suitable for use in hospitals, schools, residential buildings, and industrial settings.
Inspired by nature. Engineered for safety.
Sicursan™ delivers reliable, chemical-free water disinfection by harnessing nature-inspired electrochemical processes for safe, effective pathogen control.
Proven Applications
Hospitals / Healthcare Facilities
Condos / High Rise Complexes
Correctional Facilities

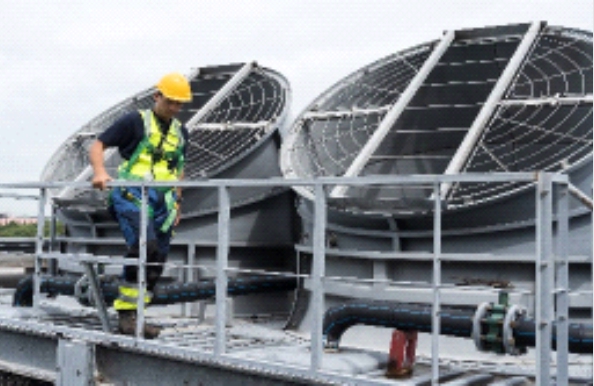

Cooling Towers
Hotels / Resorts
Swimming Pools / Spas
